AC Motor Double Reach Forklift Reach Distance 1200mm Good Turning Performance
  • name

AC Motor Double Reach Forklift Reach Distance 1200mm Good Turning Performance

MOQ: 1 set
Price: Negotiable
Standard Packaging: Nude
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
CQDH18C
Capacity:
1000kg
Max. Lifting Height:
3000-6500mm
Reach Distance:
1200mm
Free Lift:
1575-2125mm
Fork Dimension:
40/100/1070mm
Turning Radius:
1848mm
Lifting Speed, Load/unload:
0.2/0.3m/s
Battery:
36V700AH
Highlight:

narrow aisle forklift truck

,

double reach forklift

,

ac motor double reach forklift

Product Description

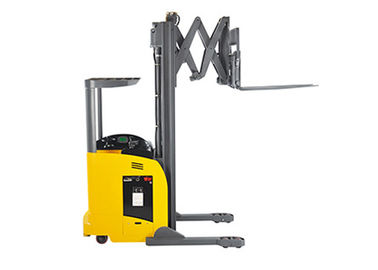

Double scissor fork reach truck electric narrow aisle truck 1000kg reach distance 1200mm



Quick Details:

Product name: Double scissor fork narrow aisle truck CQDH18C

Capacity: 1000kg

Lifting height: 3000/3500/4000/4500/5000/5500/6000/6500mm

Free lift: ~ / ~ / ~ /1575/1700/1825/2000/2125mm

​Reach distance: 1200mm

Aisle width for pallets 1000*1200 crossways: 3131mm

Aisle width for pallets 800*1200 lengthways: 3220mm

Turning radius: 1848mm

Battery: 36V700AH





Advantages:

  • ​​Double scissor fork reach truck narrow aisle truck with 1ton capacity.

  • ​Fork reach distance is 1200mm, suitable for deep shelves.

  • AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.

  • Two model function can control the speed of lift and lowering.

  • Low center of gravity, excellent stability for operation.

  • Small turning radius, good turning performance.

  • With advanced variable frequency AC motor free maintenance and excellent performance.

  • Can control the speed of driving and lifting in the same time.

  • Shock absorber system support good noise reduction.

  • Wide view mast and clear visibility.

  • With full free lifting, can work in the limited roof environment.

  • Vertically mounted drive motor with CANbus technology reduces wiring complexity and increase reliability.

  • Large cab with deadman power off switch, multi- function display: battery state, hour meter, fault indicator etc.

  • Side battery with roll-out system. It is convenient to replace batteries. The battery upside cover makes you easy to fill the battery.







SPECIFICATIONS
Model   CQDH18C
Power   battery
Load capacity/rated load kg 1000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 123/99
Tyre size, front mm 280*82+160*60
Tyre size, rear mm 125*82
Tilt of mast/fork carriage forward/backward Grad 2/5
Height, mast lowered mm 2125/2375/2625/2185/2345/2505/2675/2840
Free lift mm ~ / ~ / ~ /1575/1700/1825/2000/2125
Max. lifting height mm 3000/3500/4000/4500/5000/5500/6000/6500
Height, mast extended mm 4035/4535/5035/5535/6035/6535/7035/7535
Height of overhead guard mm 2246
Overall length mm 2585/2609
Overall width mm 1298/1040
Length to face of forks mm 1726/1750
Fork dimensions mm 40/100/1070
Reach distance mm 1200
Fork height, lowered mm 130
Distance of "X" mm 450
Overall length(excluding the fork) mm 2023
Ground clearance, centre of wheelbase mm 49
Aisle width for pallets 1000*1200 crossways mm 3110/3131
Aisle width for pallets 800*1200 lengthways mm 3197/3220
Turning radius mm 1848
Travel speed, laden/unladen km/h 6.5/7
Lift speed, laden/unladen m/s 0.2/0.3
Lowering speed, laden/unladen m/s 0.32/0.312
Battery V/Ah 36/700
Service weight kg 3460/3510/3560/3700/3800/3900/4000/4100





AC Motor Double Reach Forklift Reach Distance 1200mm Good Turning Performance 0AC Motor Double Reach Forklift Reach Distance 1200mm Good Turning Performance 1
